Standard Tunnel

The standard size to start with: 10 m x 30 m x 4.5 m, room for 900 plants, built from painted mild steel with slanted legs.

Request a quote

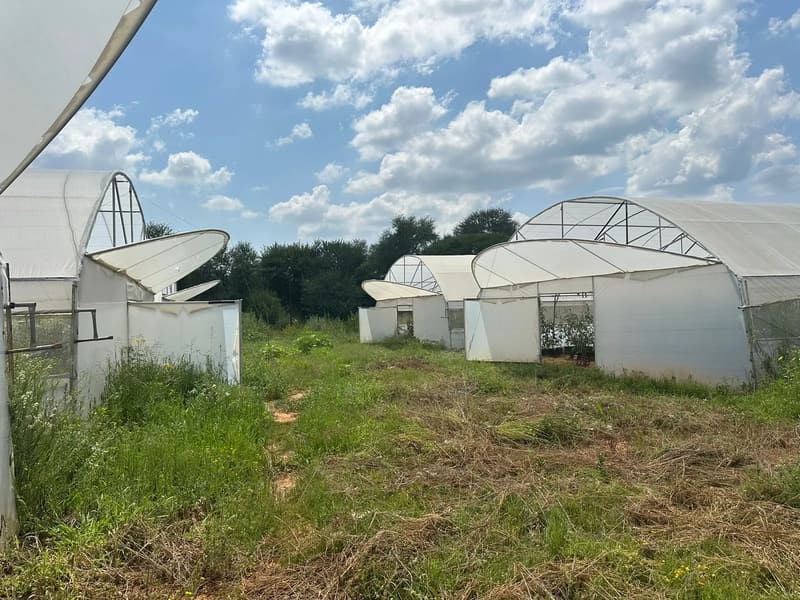

Standard tunnel covered in white plastic, with its gable flap raised and door at the end

About the Standard Tunnel

The Sunrise Standard Tunnel is the standard size for a start: 10 m x 30 m x 4.5 m, with room for 900 plants.

It is built from painted mild steel arches on slanted legs, braced at the corners and between the first two arches, with one door and two ventilation flaps the same size as the arches. It is covered in 200 micron plastic.

Sunrise's sources describe the steel in two ways: the parts list gives 42 x 1.6 mm mild steel, while the 10 m x 30 m drawing shows a 38 mm diameter steel structure on 48 mm posts. The drawing figures are listed separately below, and the exact sizes for your tunnel are confirmed in the quotation.

Dimensions: 10 m x 30 m x 4.5 m

See all standard sizes

Specifications and parts

Specifications

Size: 10 m x 30 m x 4.5 m
Plants: 900
Door: One door, 2.5 m x 2.5 m
Ventilation: Two flaps, the same size as the arches
Steel (parts list): 42 x 1.6 mm mild steel, painted
Legs: Slanted, 48 x 2 mm
Covering: 200 micron greenhouse plastic
Standard sizes: 3 m x 6 m, 5 m x 6 m, 5 m x 9 m, 6 m x 9 m, 6 m x 12 m, 10 m x 15 m, 10 m x 30 m, 20 m x 30 m multispan, 30 m x 30 m multispan

Parts list

0111 x 10 x 1.9 m high arches
0222 x 3 m legs that fit into the arches
0350 x 3 m connection braces
04One door, 2.5 m x 2.5 m
05Two flaps, the same size as the arches
064 x 3.4 cross braces at the four corners
074 x 3.2 supports between arch 1 and arch 2
082 x 3.4 supports between arch 1 and arch 2
09All steel 42 x 1.6 mm mild steel, painted
10Slanted legs in 48 x 2 mm material

From the 10 m x 30 m drawing

Structure: 38 mm diameter steel
Posts: 48 mm diameter steel posts with base plates fixed on a concrete plinth, at 3 m spacing
Side height: 2.5 m
Apex height: 3.8 m
